jEPlus+EA Key Features

Version 1.7.6 Beta

Back to Table of Contents

jEPlus+EA v1.7.6 GUI features


jEPlus+EA v1.7.x is a powerful and feature rich optimisation GUI for EnergyPlus and TRNSYS. The beta releases are free to use for both commercial and non-commercial purposes. Terms and Conditions (215.37 KiB, 4y ago, 0 downloads) apply.

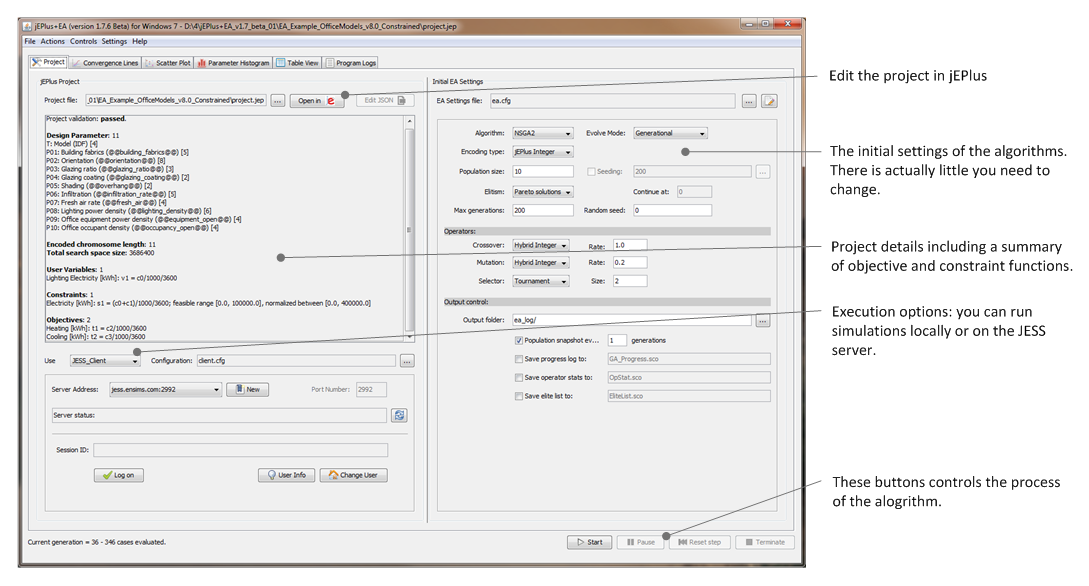

  • It fully supports jEPlus projects, with user-defined constraint and objective functions.
  • There are flexible ways to extract from simulation results or inject user-specified data.
  • Highly efficient and versatile multi-objective optimisation algorithms (based on the popular NSGA-II) is employed to work on all types of optimisation problems.
  • You can run simulations either locally or online with the JESS simulation server. You can even write Python code to run additional calculations or call other simulation tools.

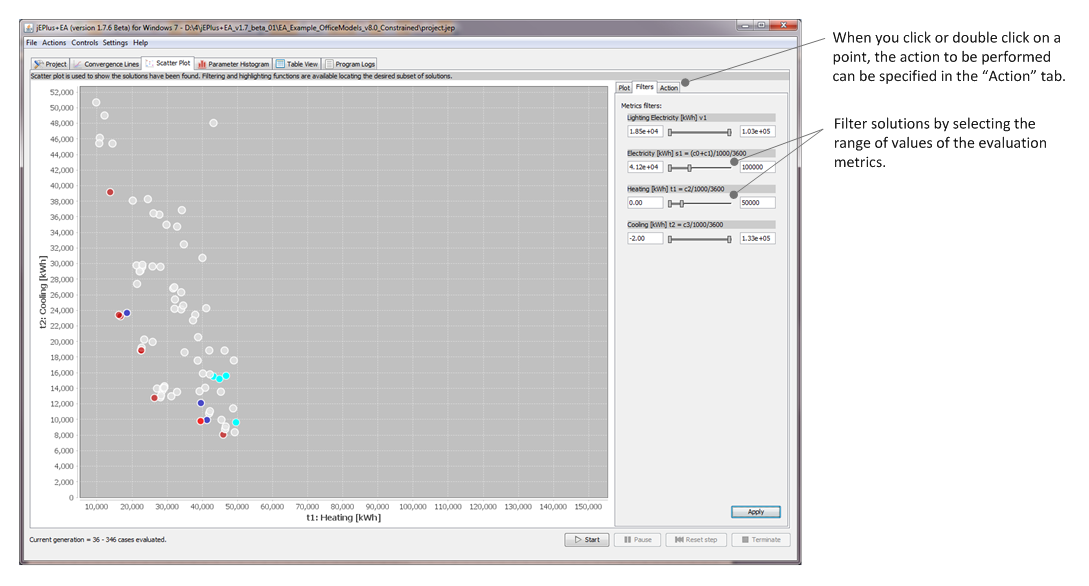

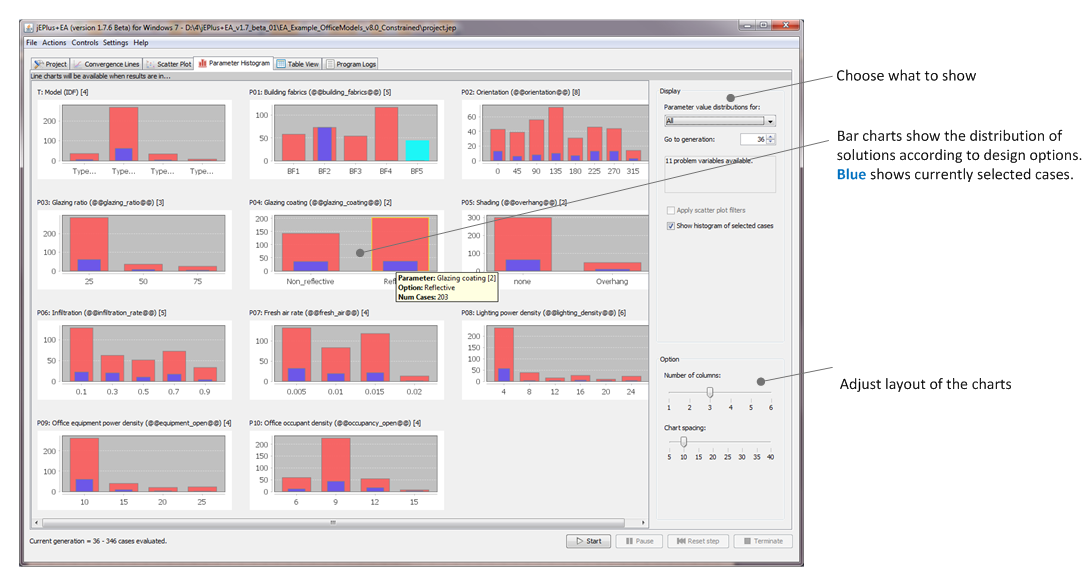

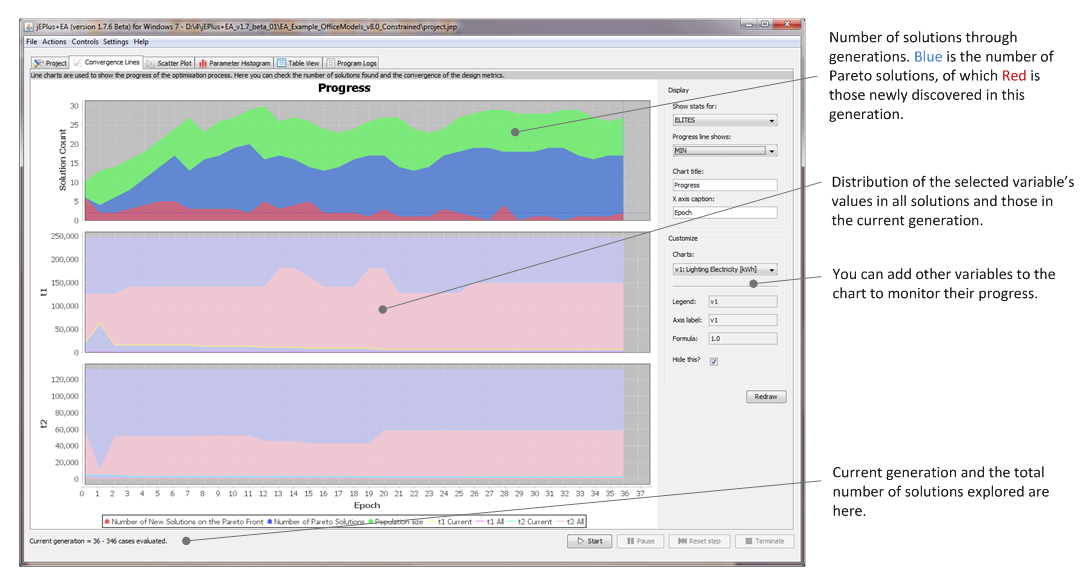

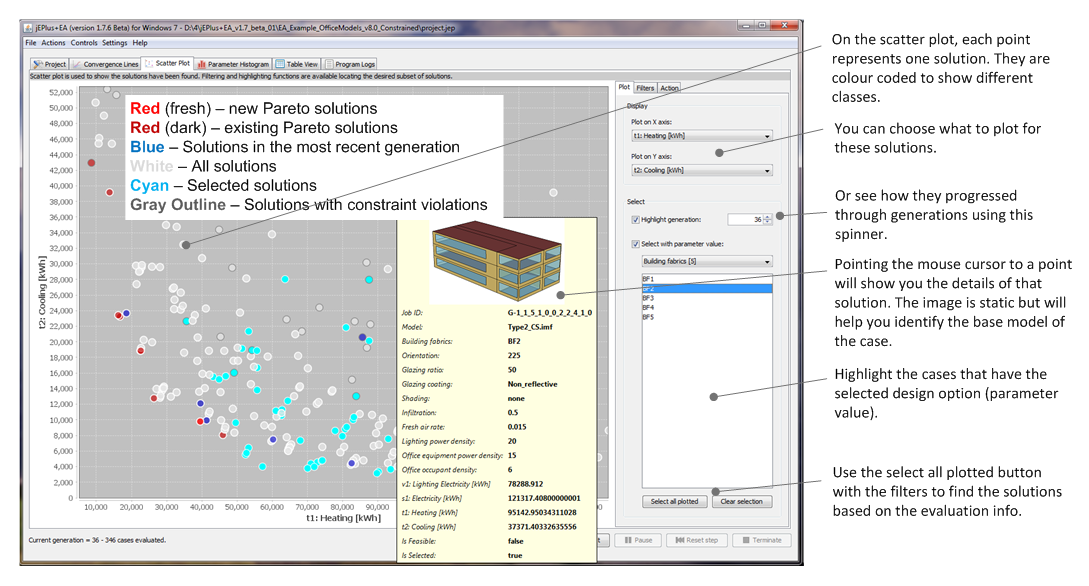

  • Interactive charts and tables are available to help you visualize, filter, mark, and export solutions, and explore the relationships between parameters.
  • When optimisation is progress, solution data is automatically saved to avoid loss of work. You can load a previously saved work space and continue with the process.
  • And, last but not least, full-featured command-line interface is provided for automated optimisation tasks or integration into other tools.


Go to the Download Page (log on is required)
